For years, Azure architects and Marketplace publishers have built ARM templates by manually authoring and maintaining complex JSON files. Today, Maestro Studio ENSEMBLE reimagines ARM template development with a visual design experience that eliminates much of the complexity while improving productivity.
Azure Resource Manager (ARM) templates are at the heart of infrastructure as code on Azure, enabling organizations to deploy cloud resources consistently and at scale. While ARM templates provide tremendous flexibility, authoring, maintaining, validating, and troubleshooting deployment templates often requires extensive JSON editing and careful management of complex ARM expressions.
To simplify ARM template development, ENSEMBLE now provides a comprehensive Visual ARM Template Development Environment that enables Azure architects, developers, DevOps engineers, cloud engineers, and administrators to create, modify, validate, and troubleshoot ARM templates through an intuitive visual experience.
By combining a Visual ARM Template Designer, Visual ARM Expression Designer, real-time validation, Azure Marketplace template discovery, Quickstart Templates, and live JSON synchronization into a single environment, ENSEMBLE helps teams accelerate Azure deployment automation while reducing complexity and manual coding effort.
Get Started Faster with Visual ARM Template Authoring
Creating Azure ARM templates from scratch can be time-consuming, particularly when building complex cloud solutions.
ENSEMBLE simplifies the process through a library of professionally designed Quickstart Templates that allow users to begin with proven deployment patterns and customize them to meet specific requirements.
Existing ARM templates can also be imported directly into the Visual ARM Template Designer from:
- Local template files (mainTemplate.json)
- URLs
- The clipboard
Also, through ENSEMBLE's Azure Marketplace Browser, users can locate Marketplace Azure Applications that utilize a desired ARM template and download those templates directly into the Visual ARM Development Environment for analysis, customization, and reuse.
Image 1. Azure Application Viewer
A Unified Environment for ARM Template Development
Managing Azure deployments often requires multiple tools for ARM template editing, validation, troubleshooting, and maintenance.
ENSEMBLE brings these capabilities together into a single Visual ARM Development Environment designed to support the entire ARM template development lifecycle.
The platform combines:
- Visual ARM Template Design
- Visual ARM Expression Authoring
- ARM Template Validation
- Live JSON Editing
- QuickStart Template Libraries
- Azure Marketplace Template Discovery
- Error Detection and Troubleshooting
- ARM Template Refactoring
This unified approach helps Azure teams spend less time debugging deployment code and more time delivering cloud solutions.
Inside the Visual ARM Template Designer
The Visual ARM Template Designer provides a centralized drag-and-drop workspace for building and maintaining Azure deployment templates without requiring direct JSON authoring.

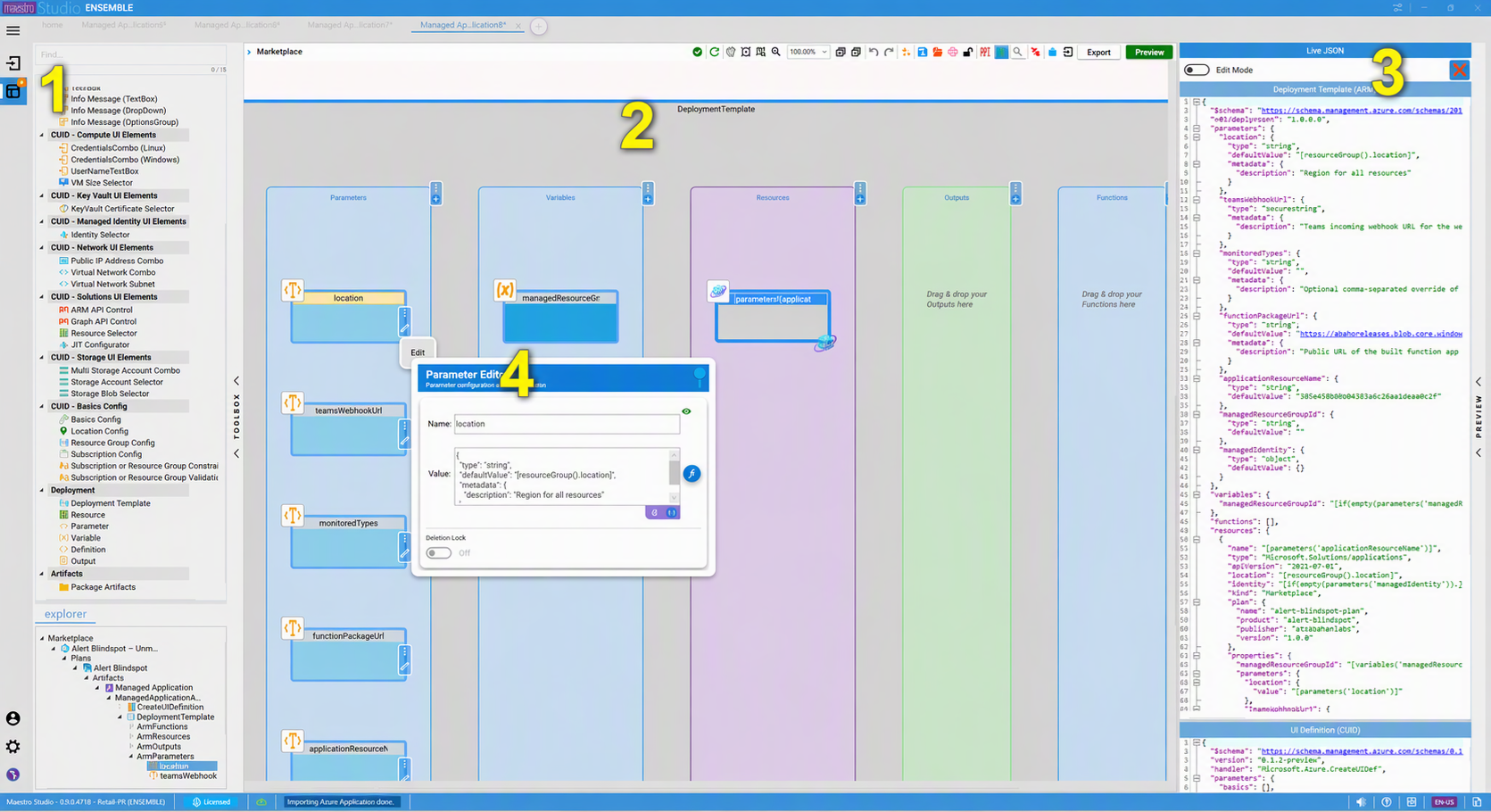

Image 2. ENSEMBLE Deployment Template Visual Designer
Understanding the Deployment Template Visual Designer
-
Toolbox
The Toolbox provides drag-and-drop access to the building blocks of ARM templates, including:
- Resources
- Parameters
- Variables
- Outputs
Users can quickly assemble and modify deployment configurations visually.
-
Visual Editing Workspace
The Visual Editing Workspace enables users to create, edit, and remove ARM template components through an intuitive interface.
Parameters, variables, outputs, resources, and deployment logic can all be managed visually, making ARM template development more accessible and significantly reducing complexity.
-
Live JSON Editor
For users who wish to view or edit the underlying code, ENSEMBLE includes a fully synchronized Live JSON Editor.
Changes made inside the Visual ARM Template Designer are automatically reflected in the ARM template JSON in real time.
Users may also edit JSON directly when necessary. To maintain consistency, changes performed through the visual designer take precedence when the same component has been modified in both views.
-
Contextual Editing Controls
Each template component includes contextual editing controls that provide immediate access to configuration settings and properties.
These controls streamline common editing tasks and help users manage complex deployment templates more efficiently.
Build ARM Expressions Without Writing Code
ARM expressions and ARM functions are among the most powerful components of Azure Resource Manager templates, but they are often one of the most challenging aspects to create and maintain.
To simplify expression development, ENSEMBLE now includes a dedicated Visual ARM Expression Designer.
Users can launch the designer directly from the Deployment control Editor by selecting the Function icon. See circled icon below.

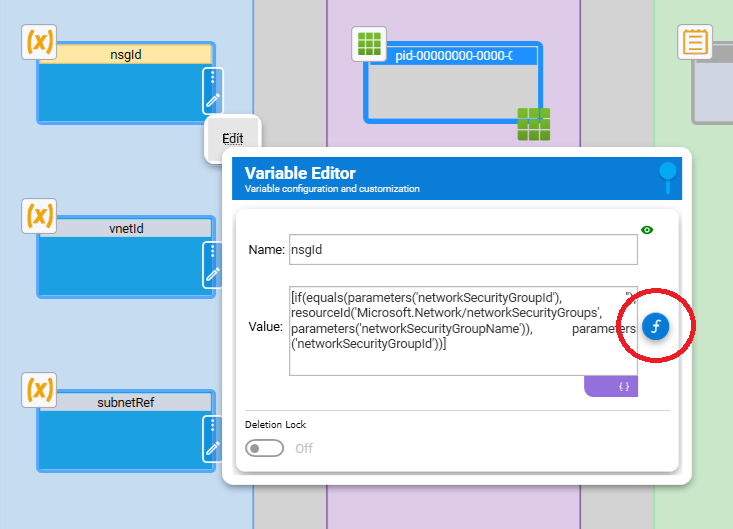

Image 3. Deployment Control Editor Window – Function Icon
Once the user clicks on the Function icon, the ARM Expression Designer tool is launched.

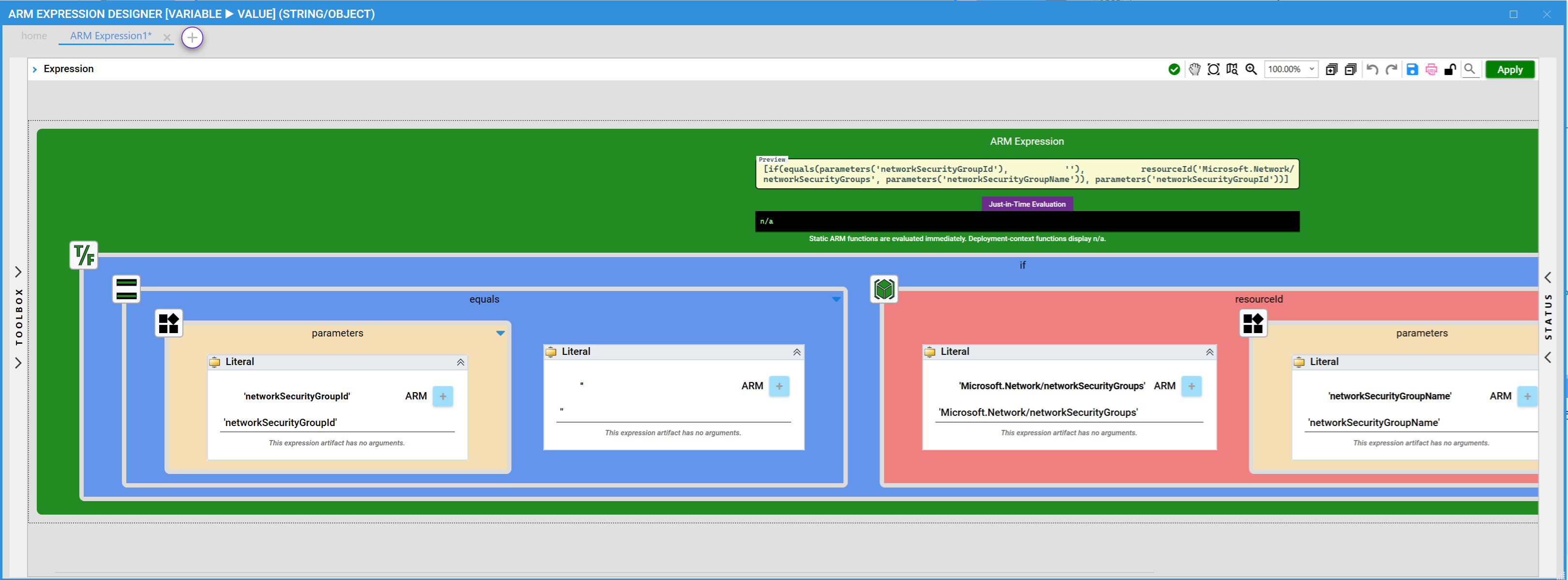

Image 4. ARM Expression Visual Designer
The Visual ARM Expression Designer enables users to create, modify, and remove ARM expressions through a guided visual experience.
Instead of manually writing ARM functions, users can visually build deployment logic while reducing syntax errors and simplifying troubleshooting.
This low-code approach to ARM expression authoring helps teams develop Azure deployment templates faster and with greater confidence.
Catch Errors Before Deployment
One of the most common challenges in Azure deployment automation is identifying issues before deployment begins.
ENSEMBLE continuously validates ARM templates while users work, helping detect and resolve problems earlier in the development process.

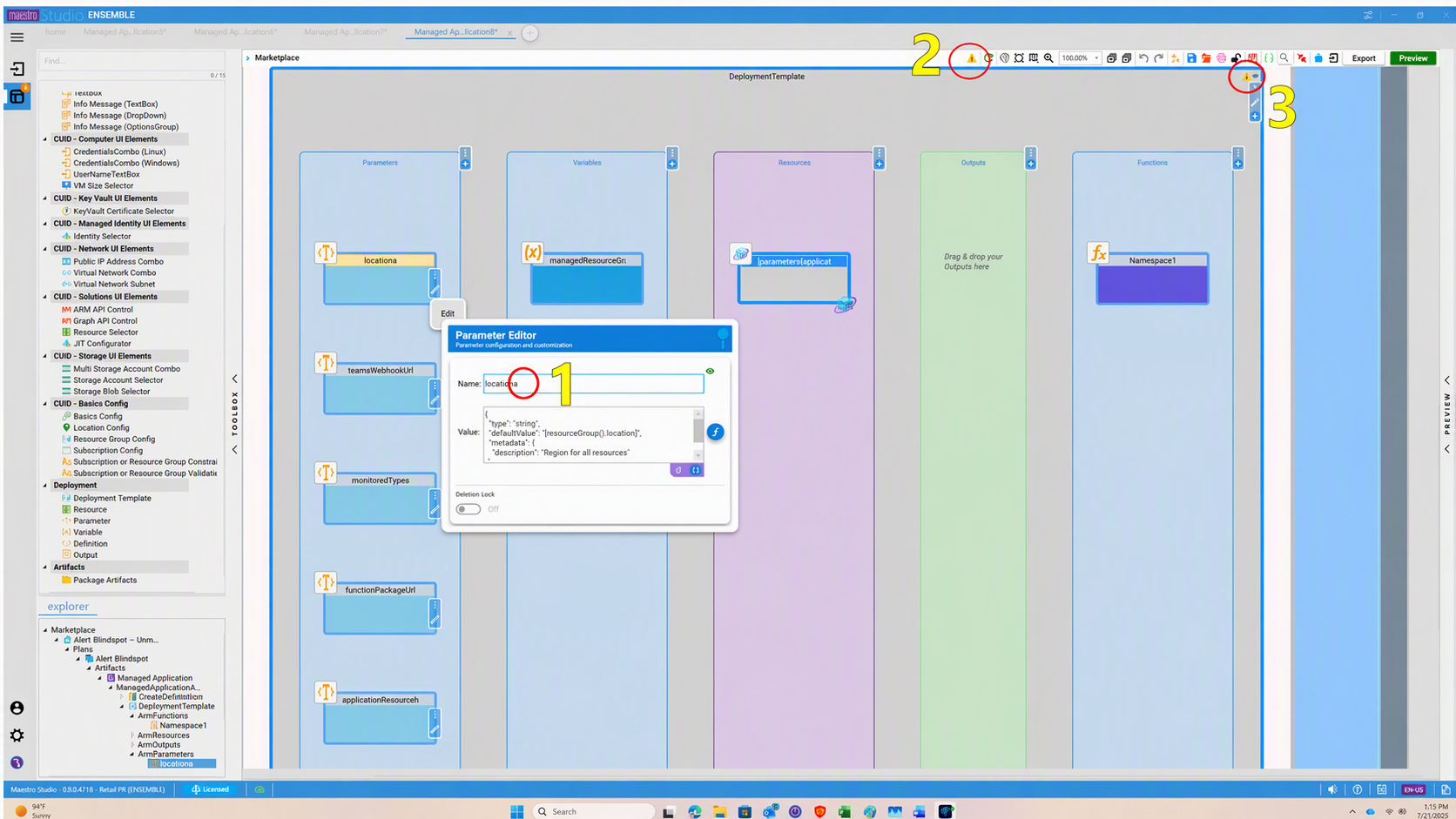

Image 5. Example of Visual Validation Warnings
When validation issues are detected, visual warning indicators immediately appear throughout the Visual ARM Development Environment.
These indicators help users quickly locate potential problems and troubleshoot deployment templates before they are saved or deployed.
In the example above, an invalid character was intentionally added to a Location value, (see #1). ENSEMBLE immediately identified the issue and displayed validation warnings throughout the interface, (see #2 and #3).
Validation indicators appear in several locations, including:
- The main toolbar
- Navigation panels
- Associated template components
Selecting a warning icon displays detailed validation messages, see screenshot below, Image 6.

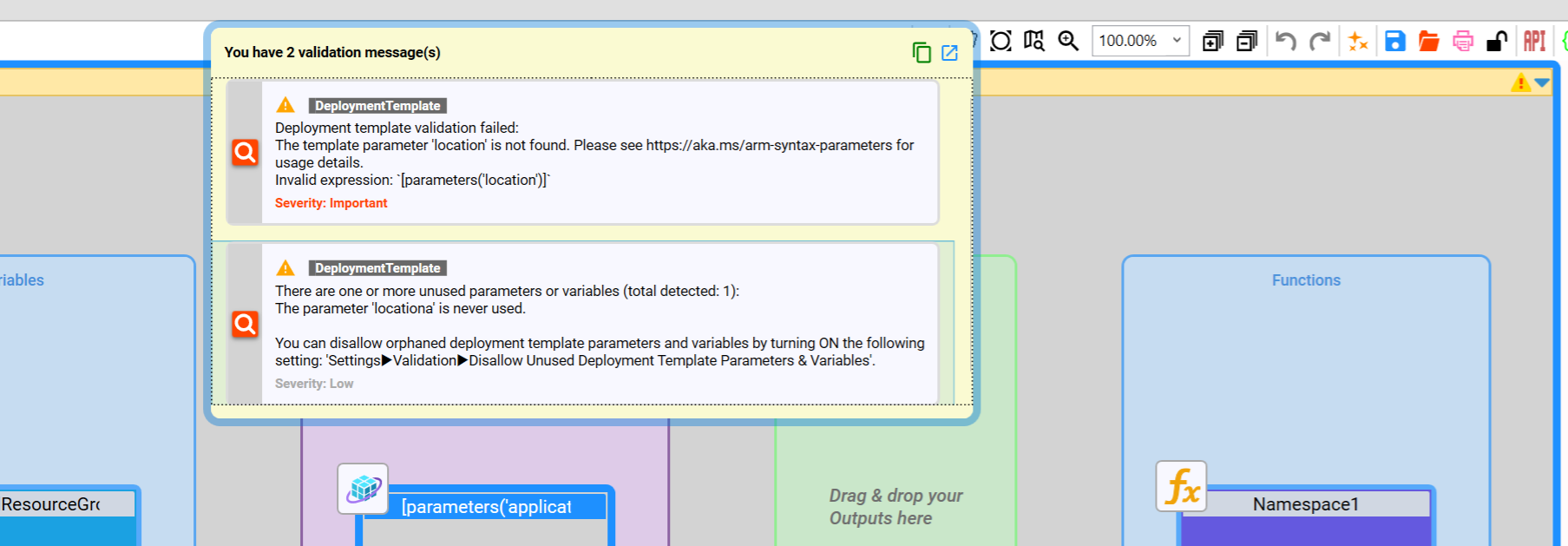

Image 6. Validation Messages
Each message clearly identifies the issue and provides direct navigation to the affected control, enabling users to quickly correct problems and continue working.
This proactive validation process reduces deployment failures, improves template quality, and accelerates Azure solution delivery.
More Than an ARM Template Editor
With the introduction of the Visual ARM Template Designer, Visual ARM Expression Designer, real-time ARM template validation, Azure Marketplace template discovery, and live JSON synchronization, ENSEMBLE evolves beyond a traditional ARM template editor.
It becomes a complete Visual ARM Template Development Environment for Azure.
Azure architects, DevOps engineers, cloud engineers, developers, and administrators can now build, modify, validate, troubleshoot, and optimize Azure ARM templates through a unified visual experience.
Whether you're starting from a QuickStart Template, importing an existing template, refactoring deployment resources, creating complex ARM expressions, or preparing an Azure Marketplace solution, ENSEMBLE provides the tools needed to simplify ARM template development and accelerate cloud solution delivery.
The future of ARM development is visual.
